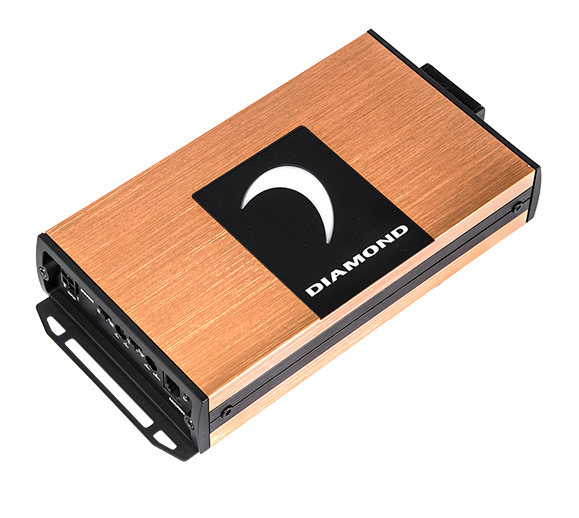

Diamond MICRO82U 2ch


2 Channel Mini Class D Amp

Out of stock



This is a great 2 Channel amp when maximum power is needed.  These will fit on each side of a Road Glide Fairing under the glove pocket.  It’s powerful, reliable, and has all the crossover adjustments you need for a good motorcycle system.  Works great with DABTR10

  •      Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
  •      Four layer, glass epoxy circuit board for enhanced performance and reliability
  •      Full Range Class D amplifier technology
  •      Balanced differential inputs for superior noise rejection
  •      Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
  •      Selectable auto-turn-on mode: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
  •      Fully variable, 12dB per octave, electronic crossovers
  •      Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
  • RMS Power Rating
    • RMS Power (2Ω): 250W X 2
    • RMS Power (4Ω): 150W X 2
    • Bridged (mono 1Ω): N/A
    • Bridged (mono 2Ω): N/A
    • Bridged (mono 4Ω): 500W
  • Type
    • Topology: Full Range Class D
  • Power Supply
    • Power Supply: Full PWM
    • Power Supply Threshold: 10.0VDC – 17.0VDC
    • Idle Current: (0.7A)
  • Distortion
    • THD 4 (1KHx @ 4Ω): 0.5%
    • S/N Ratio (A weighted @1W): -85dBA
    • S/N Ratio (A weighted @FP): -101.1dBA
  • Input Sensitivity
    • Low Input Level: 200mV – 10.0V
    • High Input Level: up to 10.0V
  • Input Impedance
    • Low Input Level: 20KΩ
    • High Input Level: 20KΩ
  • Output Stage
    • Output Impedance: 0.011Ω
    • Damping Factor (50Hz@4Ω): >250
    • Bandwidth (-3dB): 10Hz – 350Hz
  • Crossover (-12dB/Oct)
    • Variable High-Pass:40Hz – 400Hz
    • Variable Low-Pass: 40Hz – 400Hz
  • Fuse Ratings
    • ATC: 25A
  • Dimensions
    • Length x Width x Height (Inches): 7.89 x 4.0 x 1.46
    • Length x Width x Height (mm): 200.5 x 103 x 37.2
