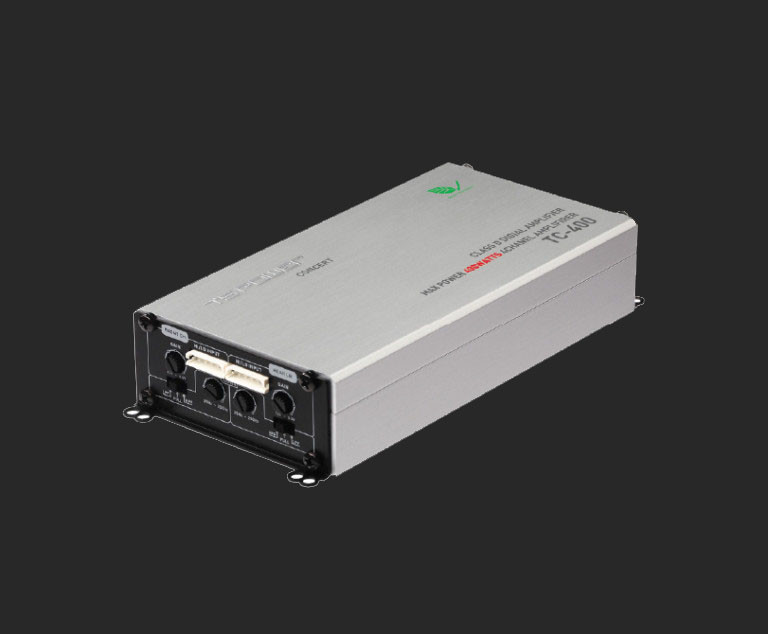

TC-400 Micro 4ch

$169.00

4ch Micro Amplifier

SKU: SCAMP4CHNESA Category:

Description

These little amps are great special purpose amps for when you need 4 channels of real Class D power in a micro small package.

Unlike a lot of motorcycle amps this size that are advertised as 50w per channel but actually only put out 14 w true RMS power, these little amps really do put out 60w RMS into all 4 channels.  We’ve tested these on our Amp dyno, so this is the real deal.

They fit inside a Harley Chrome tool kit that you’d put on the side of the bike, and they’re great for powering 2 or 4 handlebar or crashbar speakers.  You do need to properly adjust the low pass crossover, as they’re not going to give you a ton of bass, and have a limit to how hard you can drive them before they temporarily limit themselves, but for their size, they are amazing.

  • Class-D Digital Full Range 2-ohm Stable Stereo
  • 60W RMS x 4
  • Max Power: 500W
  • Full MOSFET DC-DC PWM Power Supply
  • Frequency Range: 20Hz-30Khz at 4-ohm
  • Speaker Impedance: 2,4,8 Ohm
  • Filter Frequency:
  • Low pass: 35-250Hz, 12dB Oct.
  • High pass: 35-250Hz, 12dB Oct
  • 4-way Protection
  • Chanel Separation: 55dB
  • Double Sided FR-4 PC Board
  • SMD Technology
  • RCA Input Connectors
  • High level input connector(Auto Turn On)
  • Adjustable Low-Pass, Hi-pass. Bass Boost, Sub sonic filter.
  • Dimension: 3.1” (W) x 6” (L) x 1.4” (H)
